NM550

Castings Automatic Grinder For Foundries

NM550

Product features:

  1. High rigidity

    The castings automatic grinding deburring machine for foundries has excellent rigidity, and good mechanical mechanism can achieve extremely high efficiency to grind cast iron and cast steel products;

  2. Diamond grinding wheel

    Significantly increase the service life of consumables, reduce the cost of single-piece grinding, and improve the grinding efficiency;

  3. Gas protection for motion axis

    Each movement axis is designed with positive pressure gas protection to prevent the grinding dust from entering each axis;

  4. Fully enclosed protection

    Improve the working environment.

  5. Electric spindle

    The electric spindle has fast cutting speed, large torque and high surface quality

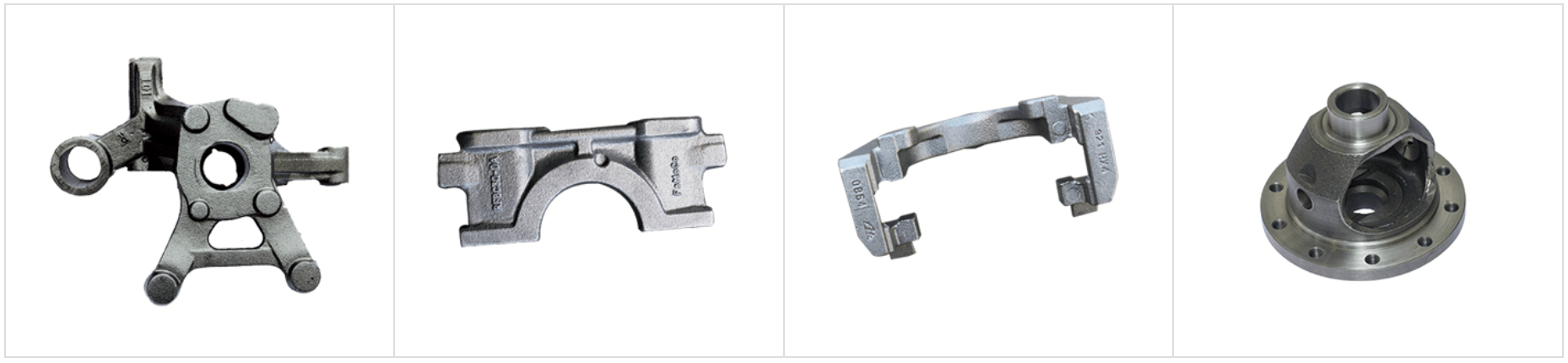

  6. Applicable workpiece


截屏2025-03-23 10.06.23.png




Download

Specification

Machine size

W: 1900 mm   D: 2405mm  H:2485mm

Maximum processing size φ550 mm*H350mm
Maximum processing quality 50 kg
Workpiece material Ductile cast iron/nodular cast iron, gray cast iron, cast steel
Spindle power 5.5 kw
Auxiliary electric spindle 6 KW
Number of tool axes 6

Video

NM550
